Shaft Mounted Couplings (SMP)
Pulley type fluid coupling for Belt Drive.

  • Available from 90 kW @ 4 pole upto 450 kW @ 4 pole.
  • Wide range of pulley diameters available.
  • Comes with inbuilt delayfil chamber.
  • Fusible plug blow off temperature is 130 degrees C as standard and optional is 160 degrees C.
  • Aluminium body with pulley in cast iron.
  • Available ready to fit coupling with fitted pulley and bored and keyed to suit motor shaft.

Performance Data

Chart

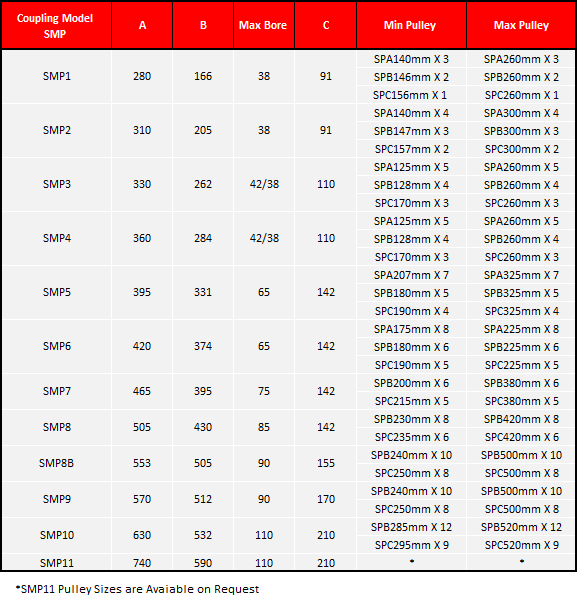

Dimensional Data

Chart
